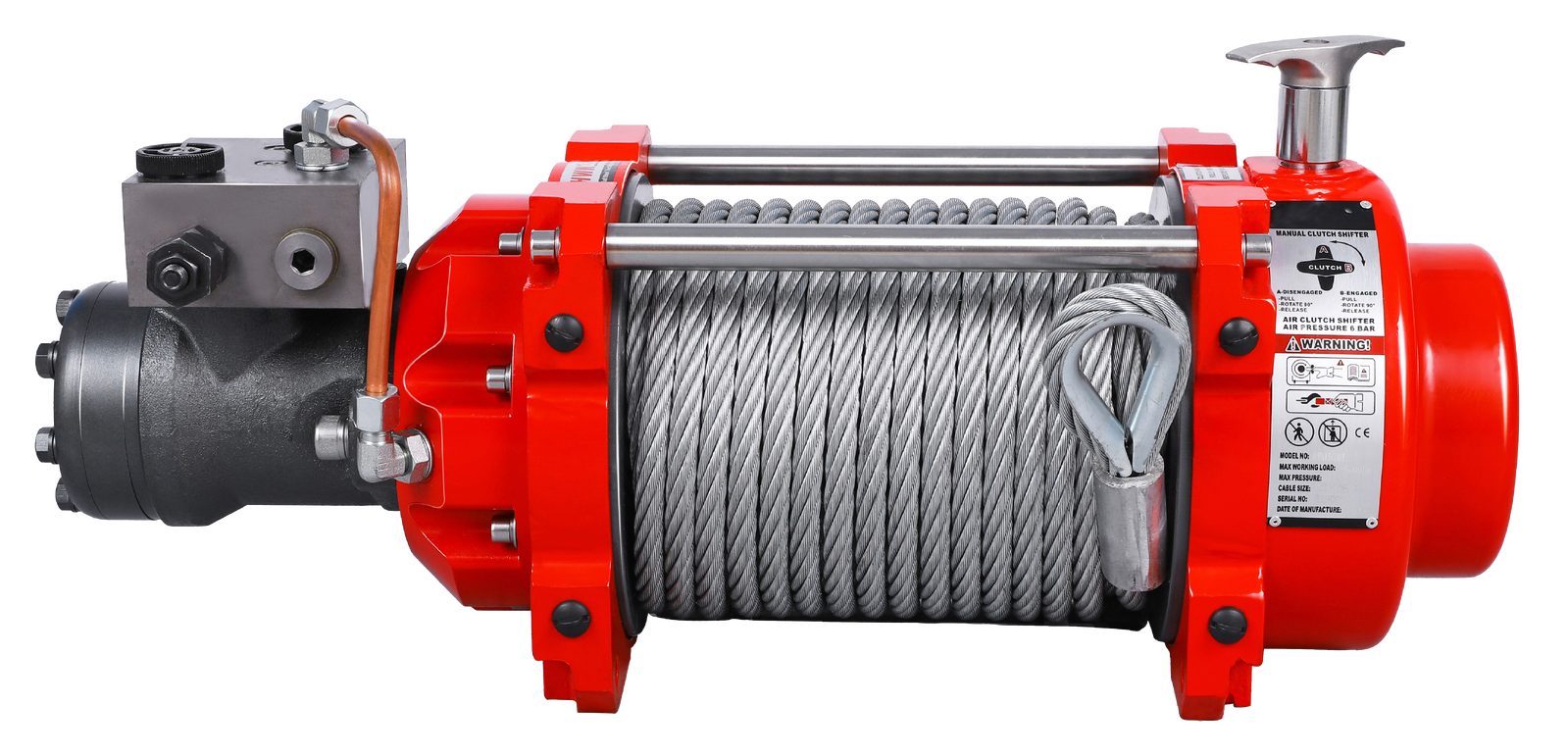

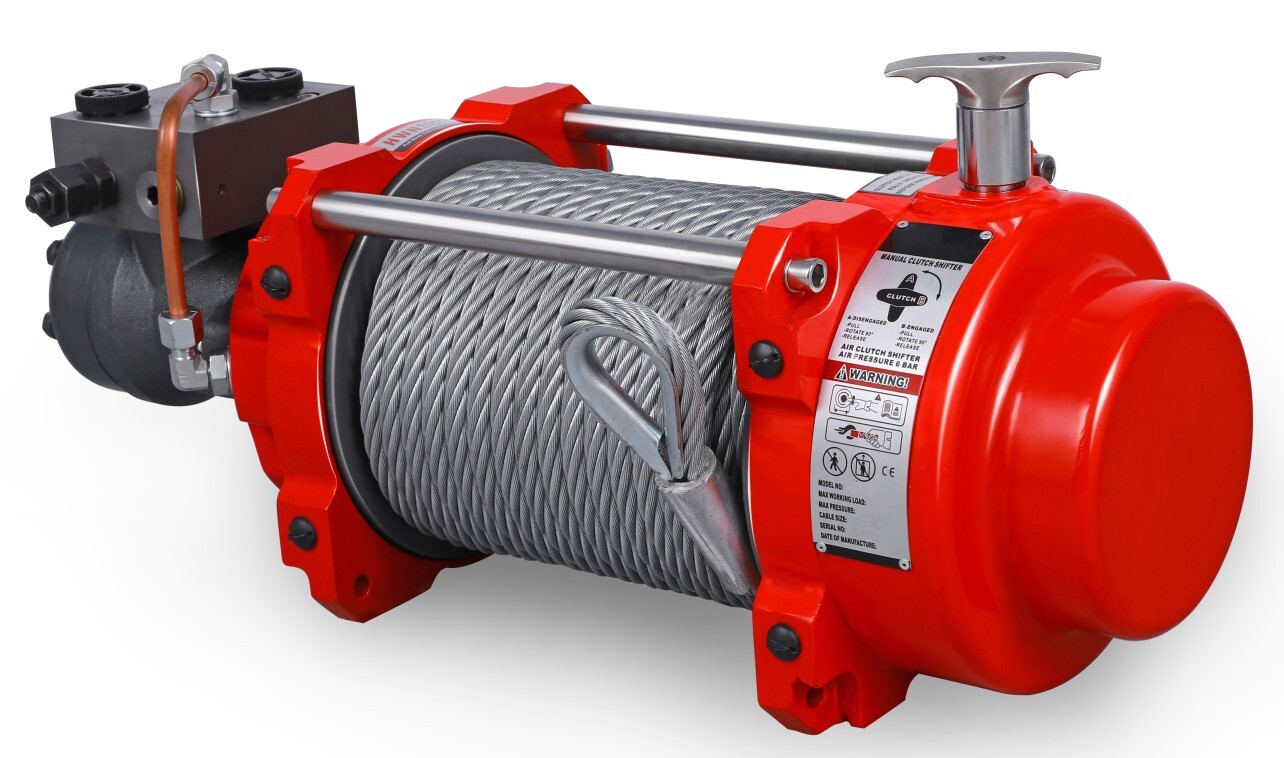

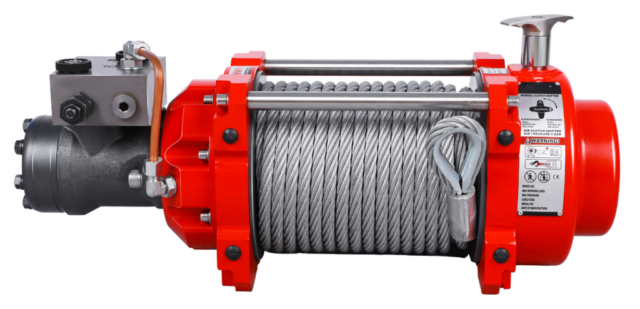

HYDRAULIC WINCH 15,000lbs WITH STEEL CABLE

Description

The BMI15000I is a powerful commercial grade hydraulic winch that can be used in a variety of industries and applications. This winch offers a massive 15,000lb of line pull. Designed with size and weight in mind, this model is only 586mm in length and 71KG in weight making it perfect for applications where size is crucial.

The braking is automatic via the wet-type hydraulic disc brake. The gearbox is strong and efficient thanks to the two stage planetary setup. The manual clutch is easy to operate. This can also be changed over to the optional extra Air Clutch system for ease of operation if reaching the clutch lever is difficult or more time consuming.

With full IP67 ingress protection this winch can be used in the most extreme conditions. The BMI15000I is perfect for tow trucks & recovery vehicles, expedition vehicles like Unimog & Iveco Daily, log splitters, portable hydraulic machines, marine applications and MUCH more.

If you need a handheld or wireless remote to operate the winch, a full optional extra accessory kit can be purchased which includes a handheld remote (wireless optional), directional control valve (either 12V or 24V) and valve block.

RATED LINE PULL – 15,000LB (6,804KG)
MOTOR DISPLACEMENT – 80ML/R
OIL FLOW REQUIREMENTS – 25 – 60L/MIN
PRESSURE REQUIREMENT – 13MPA
GEAR TRAIN – FULL STEEL 2 STAGE PLANETARY
GEAR RATIO – 33.4:1
CLUTCH TYPE – STAINLESS STEEL ROTARY CLUTCH
CLUTCH HANDLE POSITION – TOP OF WINCH
BRAKE – AUTOMATIC LOAD HOLDING HYDRAULIC DISC
CABLE TYPE – STEEL CABLE
CABLE SIZE – 12MM X 26.5M
DRUM SIZE – 89MM X 217MM
MOUNTING BOLT PATTERN – 254MM X 114.3MM (4X M12 BOLTS)

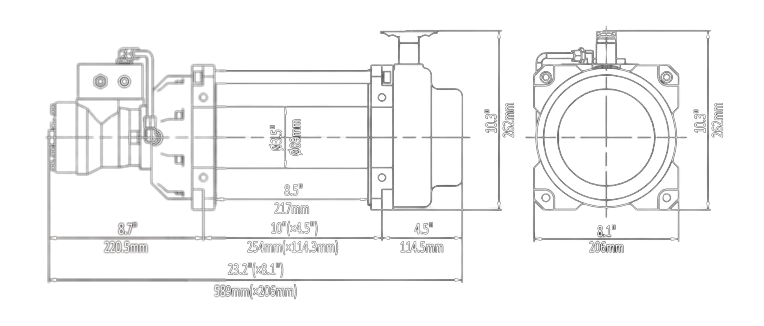

OVERALL DIMENSIONS – 586MM X 255MM X 262MM
REMOTE CONTROL – OPTIONAL EXTRA. (DIRECTIONAL CONTROL VALVE ALSO REQUIRED)
FINISH – RED POWDER COAT
WARRANTY – LIMITED 18 MONTH COMMERCIAL WARRANTY
SHIPPING WEIGHT – 71.00KG
SHIPPING WIDTH – 0.330M
SHIPPING HEIGHT – 0.330M
SHIPPING LENGTH – 0.660M
