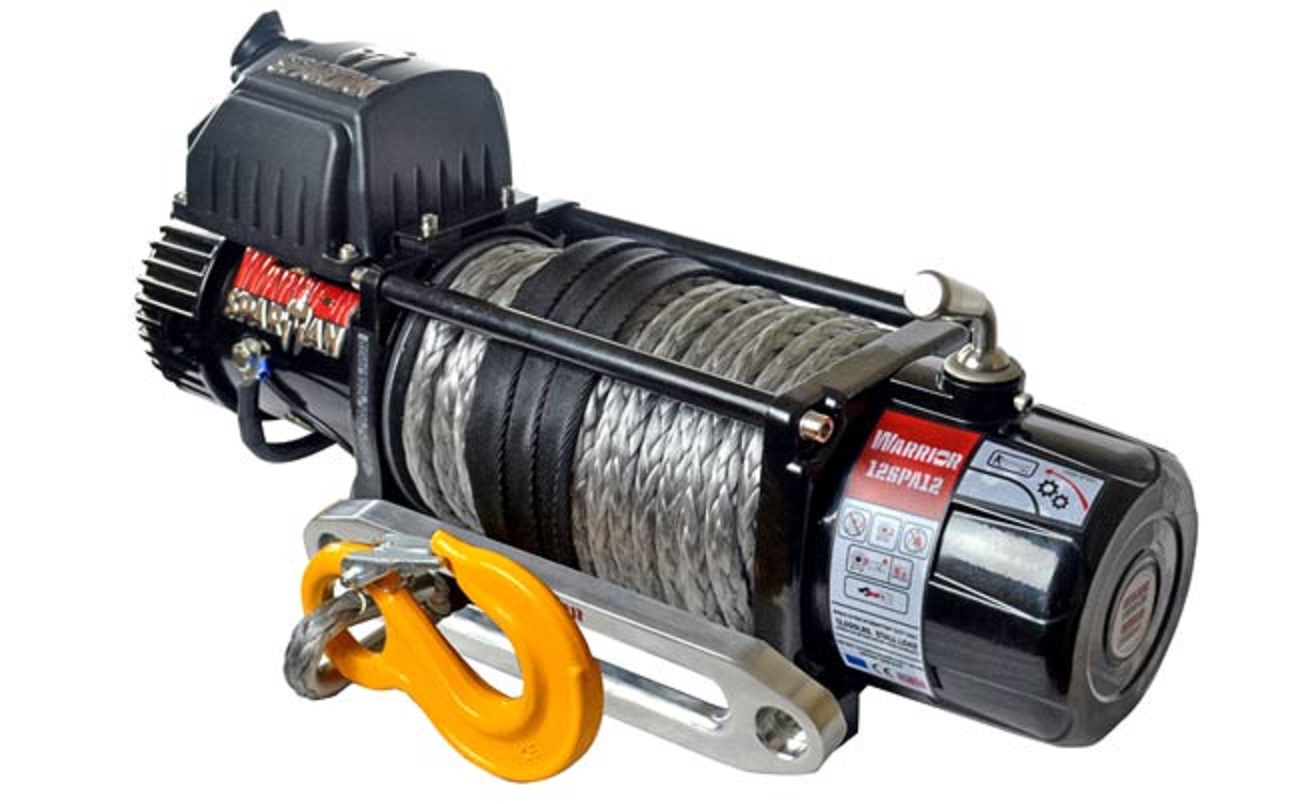

12000 SPARTAN WINCH 24V WITH SYNETHETIC ROPE
SKU: 12SPA24Available
$1,210.00
12000 SPARTAN WINCH 24V with synthetic rope
PDF – Warrior Spartan Series Brochure
PDF – Warrior Spartan 12000 Technical Diagram
PDF – Warrior Spartan 12000 Winch User Manual
PDF – Warrior Spartan 12000 Winch Parts List
1 in stock
Description
DESCRIPTION
In the winching industry, you usually get what you pay for. The lower the price, the poorer the quality. Very rarely is a new product brought to the market that is the exception to this rule, giving you far more features & value than the price would imply.
Warrior Winches are delighted to announce the arrival of the Spartan Series, Tough, Strong and ready for a Battle, these Winches really will challenge all before them. We have reluctantly termed them as ‘entry level’, however this describes the price point, not the performance. We really believe these to be the best value for money Winches around, a lower price does not mean that we have had to compromise the core values integral to a good winch, such as reliability and durability.
Available in 8000lb, 9500lb, & 12000lb capacity there is a model for every leisure application. With great performance, outstanding features included as standard, & backed by the Warrior Winches un-rivalled limited Lifetime Warranty, this should make a Spartan the first choice for all serious enthusiasts.
Outstanding Features
Weather Sealed High Performance Motor
Heavy Duty 3 Stage Gearbox
Heavy Duty Drum Supports
Weather Sealed Solenoids
Full Steel Planetary Gearing
Full Load Holding Brake
Every winch is 100% Load Tested
Chip Resistant Gloss Paint Finish
Specifications
Rated Line Pull | 12000 lbs (5443 kg) |
---|---|
Motor | 12v : 6.0hp / 4.6kw |
Gearing | 230:1 |
Braking Action | Auto in the drum |
Drum Size – Dia x L | 63 x 224mm (2.48 x 8.82 in) |
Cable – Dia x L | 11mm x 25m (0.43 in x 82 ft) |
Dimensions | 579 x 160 x 248mm (22.8 x 6.3 x 9.8 in) |
Mounting Pattern | 254 x 114.3 mm (10 x 4.5 in) |
Weight kg | 31 kg (68 lbs) |
Certification | CE Certified |
Layer of Rope/Cable | Line Pull: lbs(kgs) |
---|---|
1 | 12000 (5443) |
2 | 9533 (4324) |
3 | 7907 (3586) |
4 | 6755 (3064) |
Line Pull lbs (kgs) |
Line Speed 12v ft/min (m/min) |
Amp Draw 12v |
---|---|---|
0 | 22 (6.6) | 65 |
6000 (2721) | 11.15 (3.4) | 120 |
8000 (3629) | 7.22 (2.2) | 230 |
10000 (4536) | 4.92 (1.5) | 310 |
12000 (5443) | 3.28 (1.0) | 380 |
Additional information
Weight | 35 kg |
---|---|
Dimensions | 60 × 30 × 30 cm |
