Trojan Portable Utility Winch – Synthetic
SKU: 40PUA12Availability: This product is currently out of stock.
$763.13
DESCRIPTION

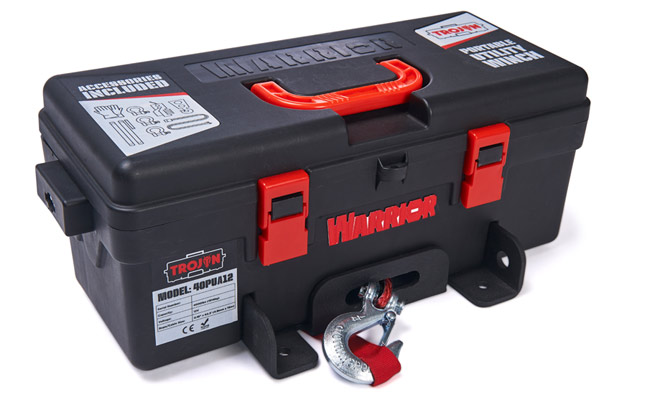

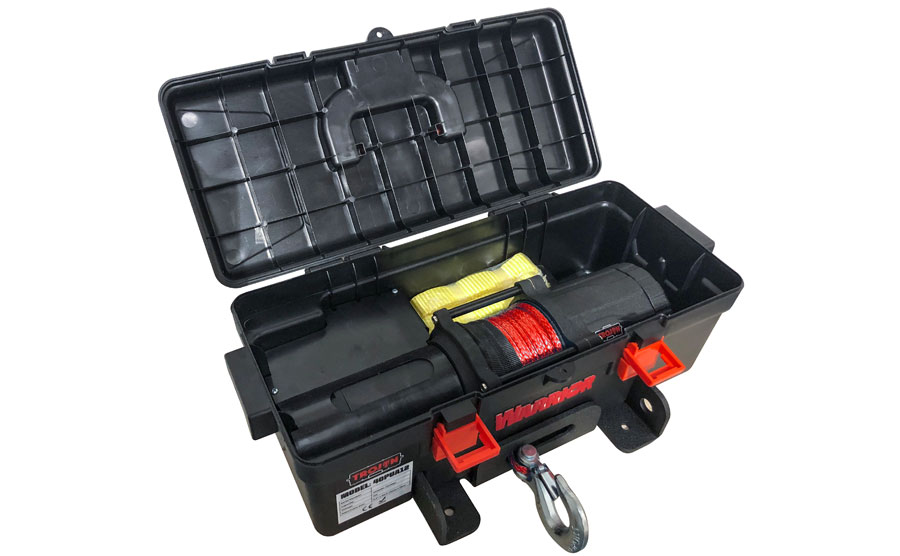

The Trojan Portable Utility Winch is a complete winching solution in a convenient kit that features a 4,000 lb rated line pull winch on a unique powder coated winch platform, all in a compact, easy to carry composite tool box. The kit is easy to store, use, and repack.

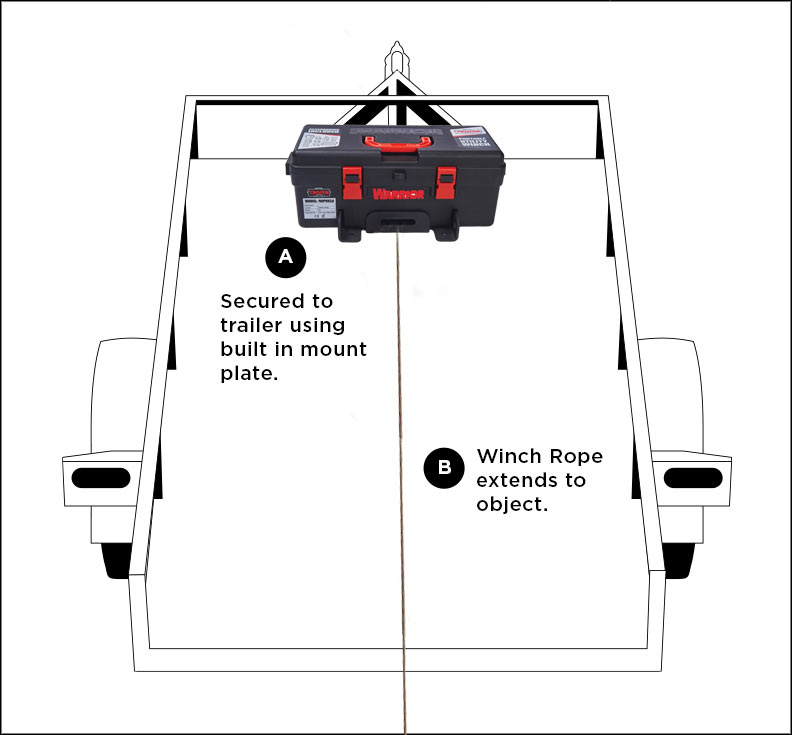

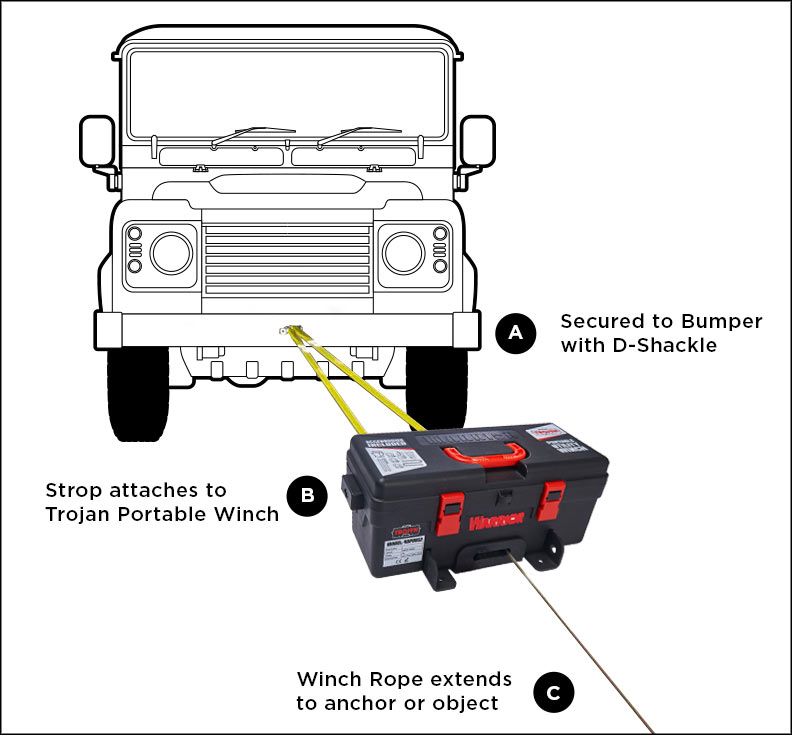

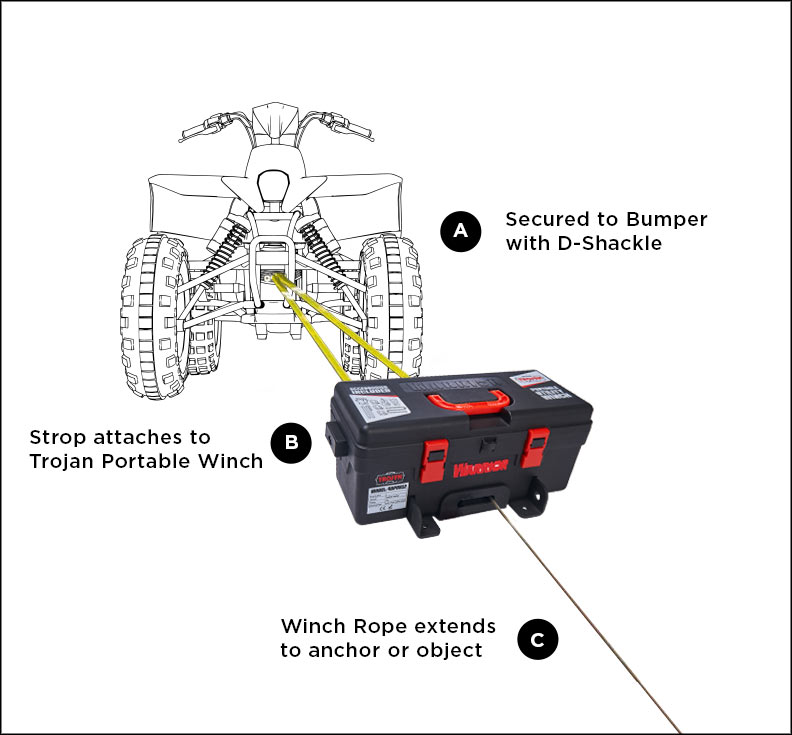

Completely portable, the Trojan requires no installation and does not require a winch mount; however, it can be permanently mounted on a trailer and be used as a utility winch if desired.
PDF – Warrior Trojan Portable Utility Winch Brochure
PDF – Warrior Trojan Portable Utility Winch Parts List
PDF – Warrio Trojan Portable Utility Winch Manual
Out of stock
Description

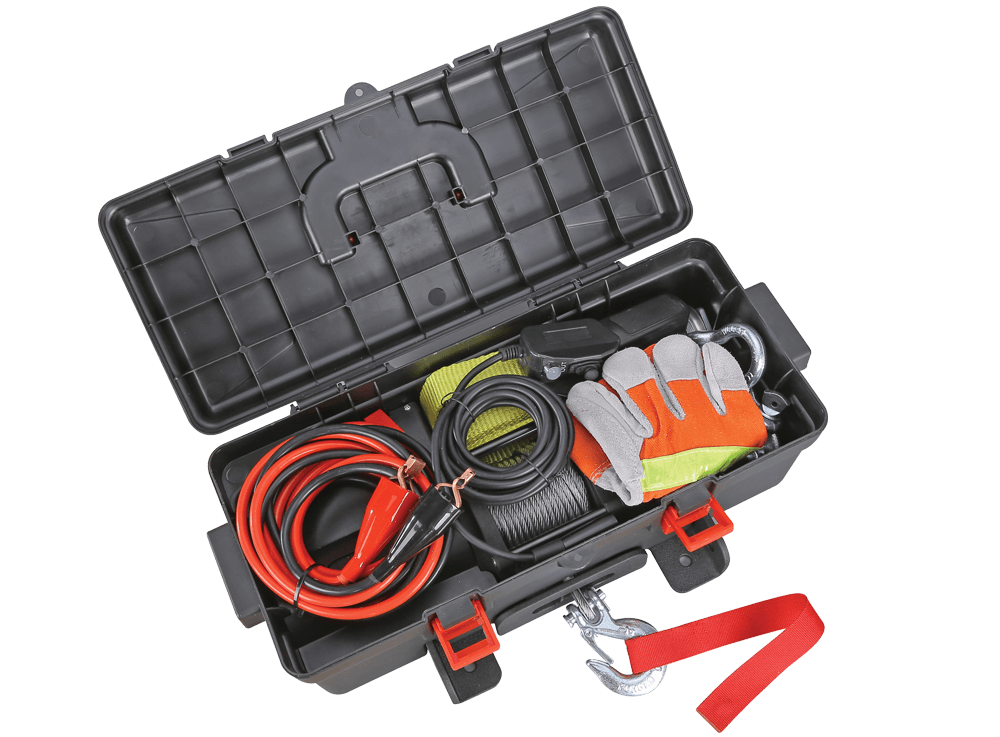

*Wire Rope Version Shown

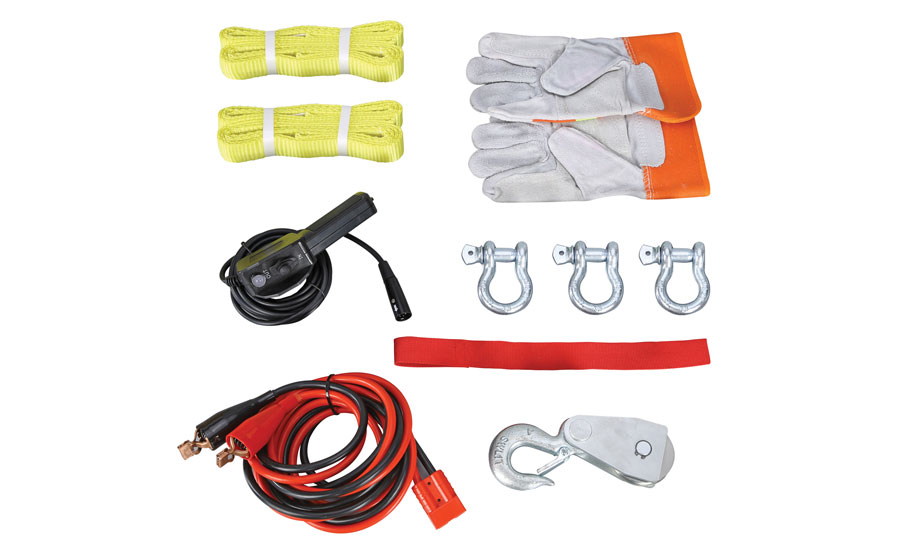

Included with the Trojan
Quick Connect Cord With Alligator Clips
Heavy Duty Leather Palmed Winch Gloves
6 000lb Pulley Block
3.6m (12ft) Hand Remote
Three 20 000lb D-shackles
Two 8ft Heavy Duty Straps Rated 8 000lbs
Outstanding Features
4000 lb Pulling Power

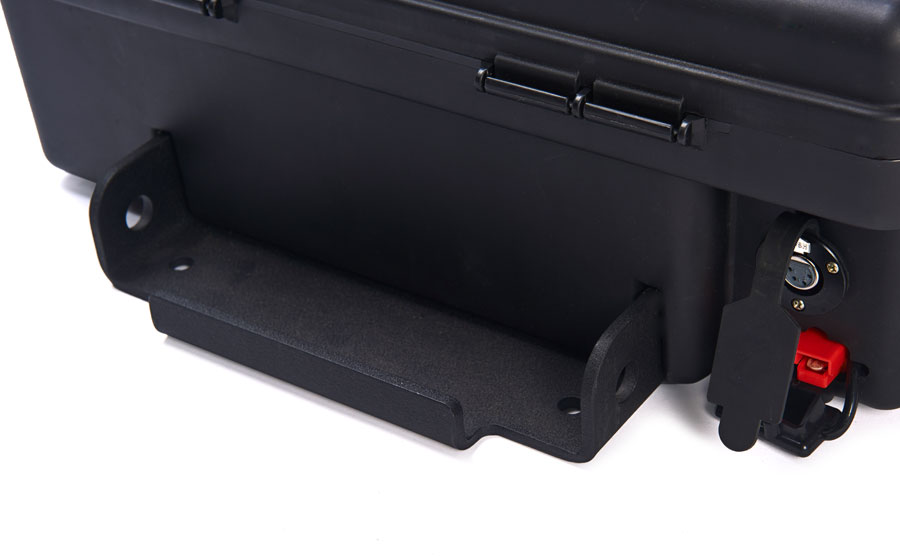

Built in 1/4 inch hardened steel plate
Can be permanently mounted
Quick plug and play functionality
Specifications
| Rated Line Pull | 4000 lbs (1814 kgs) |
|---|---|
| Motor | 12v: 2.4kW / 3.2hp |
| Gearing | 166:1 |
| Drum Size – Dia x L | 50.4 x 82mm (1.98 x 3.2 in) |
| Cable – Dia x L | 5mm x 15m (0.19in x 49.2ft) |
| Dimensions | 506 x 304.5 x 192.2mm (19.9 x 12 x 7.6in) |
| Mounting Pattern | 210 x 234mm (8.3 x 9.2 in) |
| Weight kg | 19kg (41.9 lbs) |
| Layer of Rope/Cable | Line Pull: lbs(kgs) | Rope on drum ft(m) |
|---|---|---|
| 1 | 4000 (1814) | 8.5 (2.6) |
| 2 | 3351 (1520) | 18.7 (5.7) |
| 3 | 2883 (1307) | 29.8 (9.1) |
| 4 | 2530 (1147) | 42.0 (12.8) |
| Line Pull lbs (kgs) |
Line Speed 12v ft/min (m/min) |
Amp Draw 12v |
|---|---|---|
| 0 | 14.4 (4.4) | 28 |
| 1000 (454) | 9.8 (3.0) | 80 |
| 2500 (1135) | 7.2 (2.2) | 150 |
| 4000 (1814) | 4.9 (1.5) | 190 |
Additional information
| Weight | 10 kg |
|---|---|
| Dimensions | 40 × 30 × 25 cm |
