Balance Shaft Removal & Installation Kit – JLR 2.0L Diesel

Description

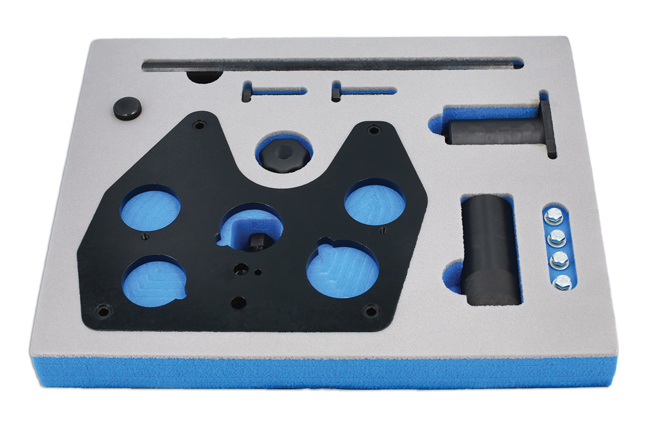

Designed to allow the safe removal, fitting and timing of the gear driven balance shaft on the Jaguar Land Rover AJ200 2.0L diesel engines. The kit contains all the essential components to enable the balance shafts to be aligned when reassembling the components. NOTE: For camshaft timing, Laser recommend the use of Part No. 7430 timing tool kit, available separately.

For removal, refitting & setting the balance shafts.
Applications include: Jaguar E-Pace (from 2017), F-Pace (2016 – 2020), XE (2015 – 2020), XF (2015 – 2020); Land Rover Discovery (from 2017), Discovery Sport (2015 – 2019), Range Rover Evoque (2015 – 2019), Range Rover Sport (2016 – 2018), Range Rover Velar (from 2017).
Engine codes include: 2.0L Diesel, AJ20/204DT, AJ20/204DTA, AJ-200D/204DT, AJ-200D, AJ-200D/204DTA, 204DTA, AJ-200/204DTD.
Equivalent to OEM JLR-303-1662, JLR-303-1663-1, JLR-303-1663-2, JLR-303-1663-3, JLR-303-1664, JLR-303-1665. For engine camshaft timing, please see Part No. 7430.
Made in Sheffield. Use in accordance with OEM instructions.

PDF – 8271 Instructions

Component – Description – OEM Toolcodes
C983 – Alignment Plate – JLR-303-1662
C984 – Separator Body – Balance Shaft Gear – JLR-303-1663-2
C985 – Separator Force Screw – Balance Shaft Gear- JLR-303-1663-1
C986 – Separator Guide – Balance Shaft Gear – JLR-303-1663-3
C987 – Remover/Installer Guide Rod JLR-303-1665
C988 – Aligner – Balance Shaft & Screw – JLR-303-1664
